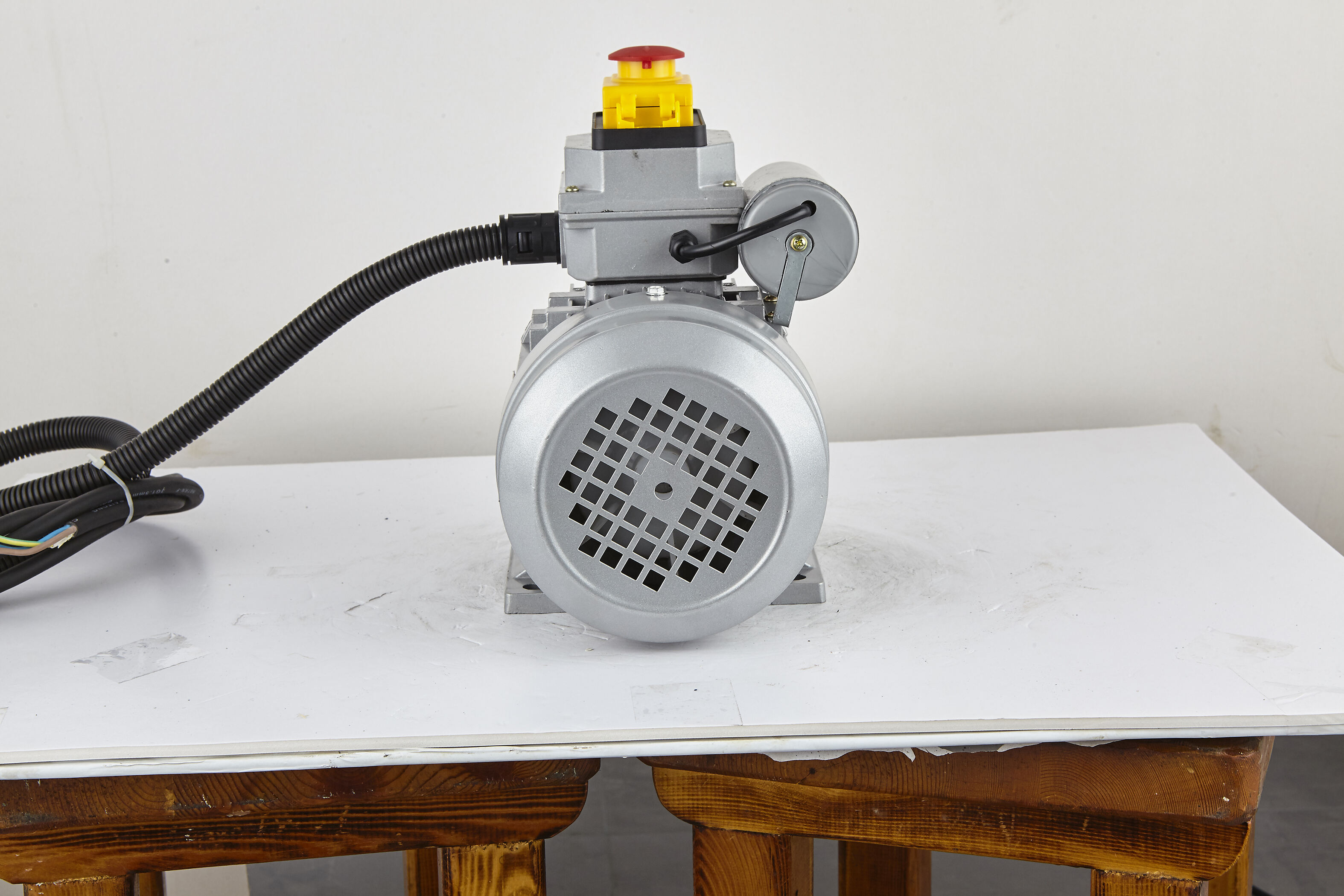

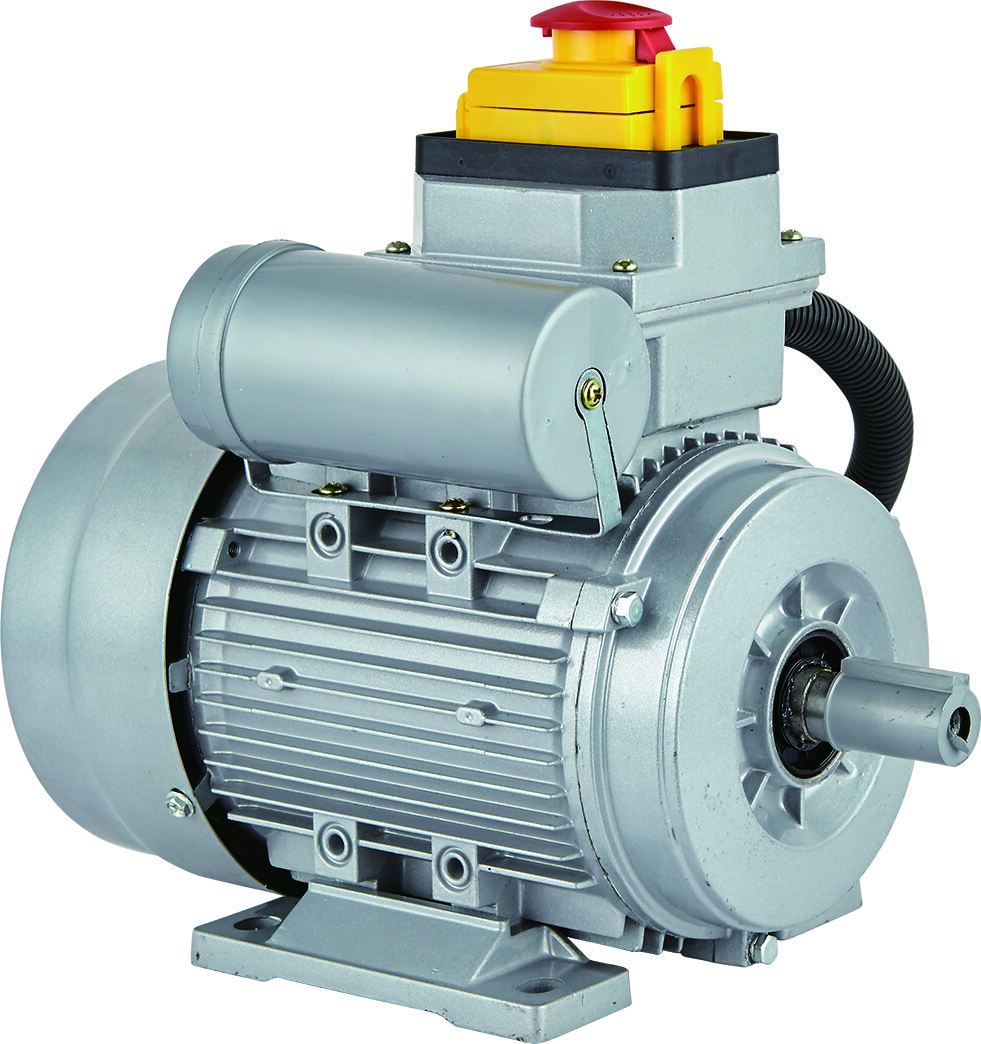

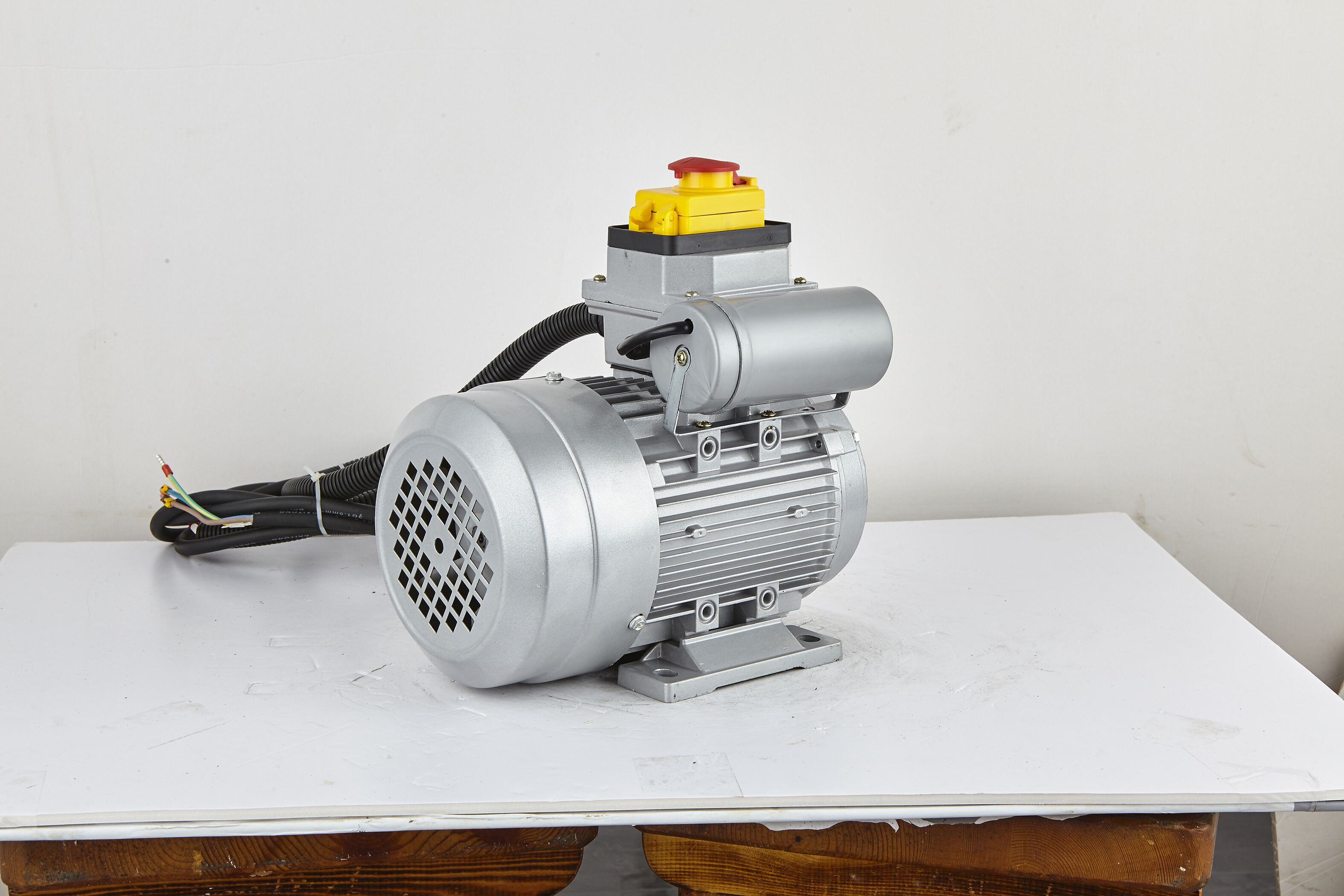

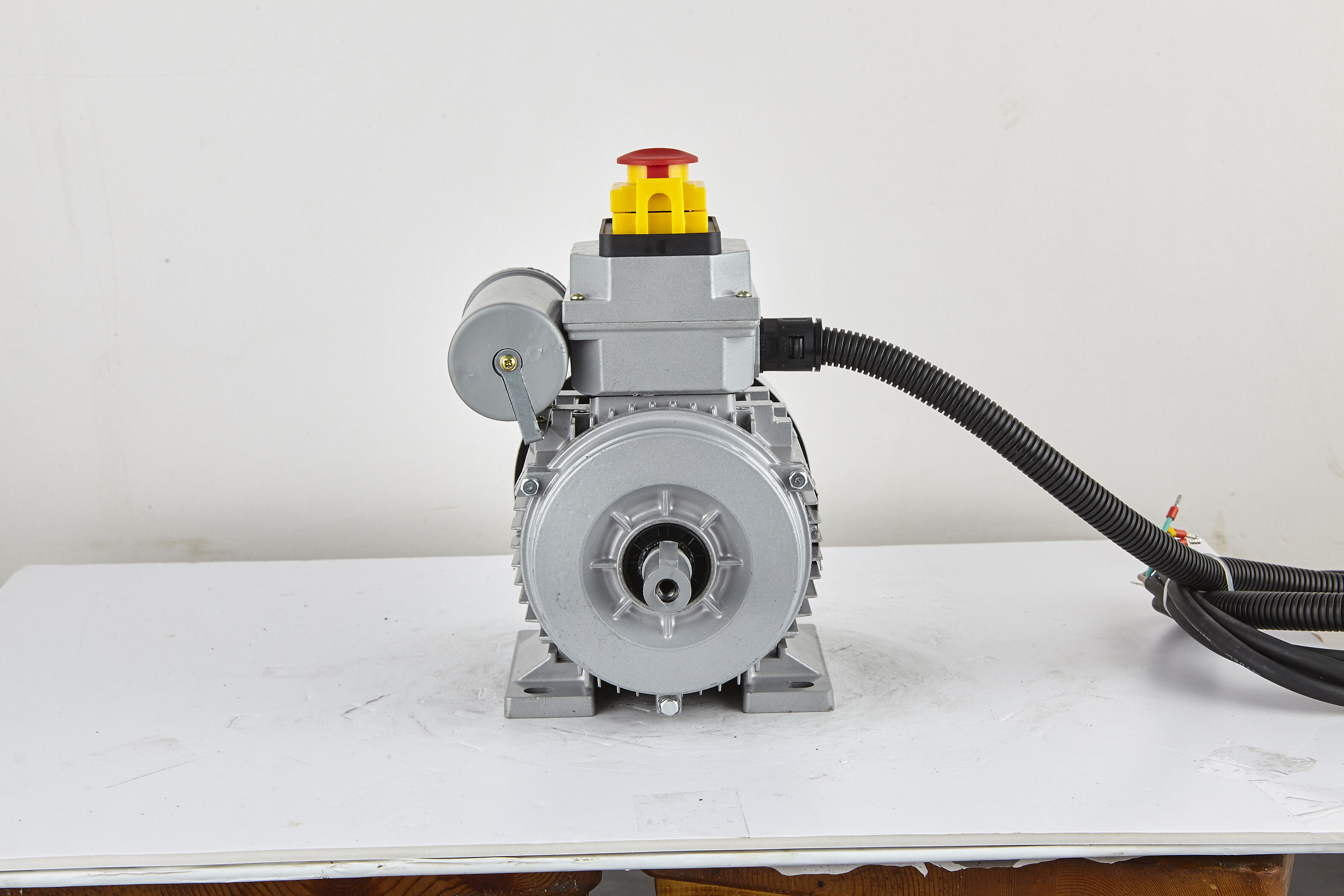

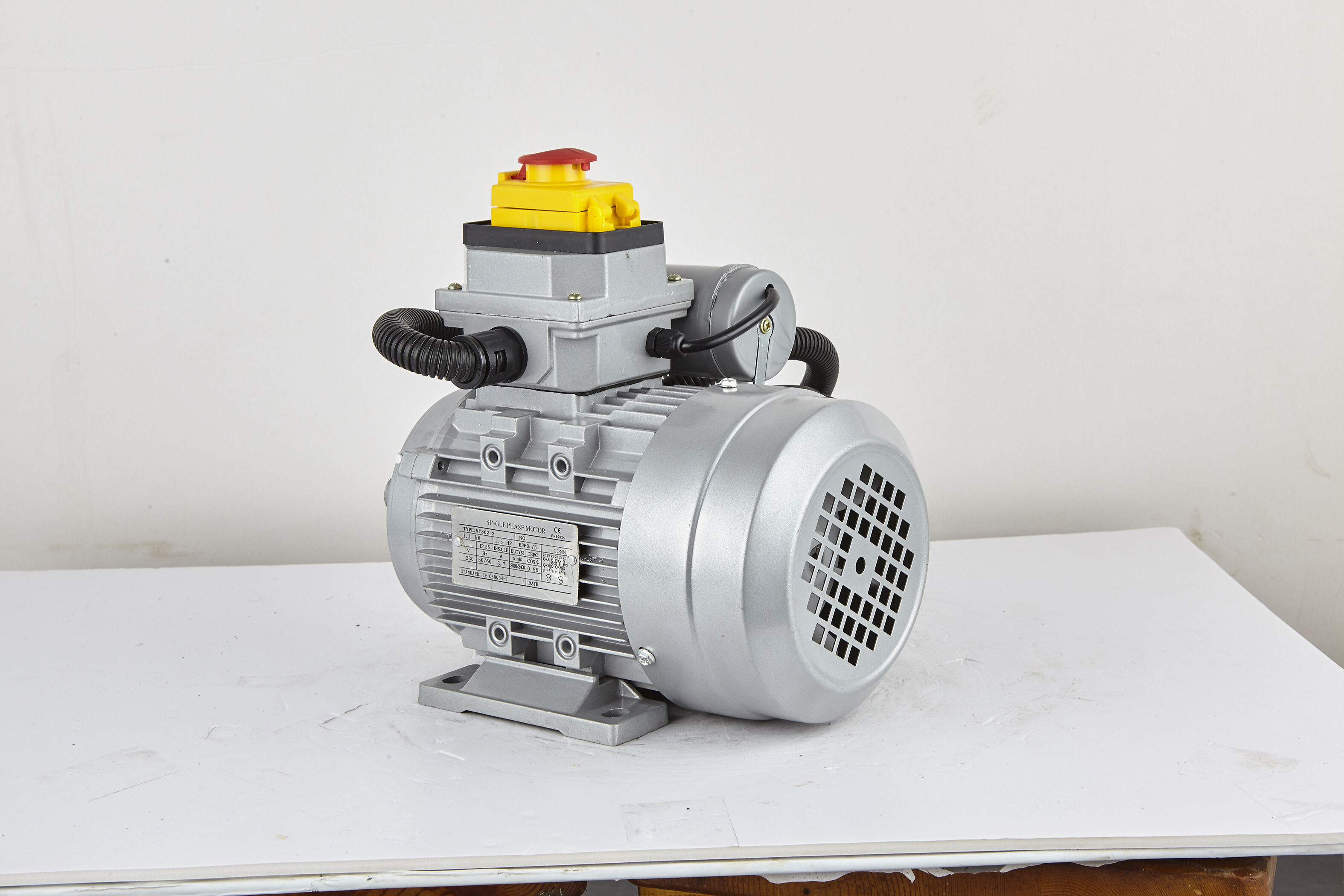

Single phase electric motor

YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS

Electric motor features:

YC Series Heavy-duty single-phase motors are suitable for small size machine tools and water pumps,especially for family workshops where only single-phase power supply is available.Motors of thisseries are integrated with up-to-date design,manufacture with the best quality materials,possess the features of pleasant-looking appearance and meet the IEC standards.

YC series motors are of IP44 totally enclosed fan-cooling type,rated outputs is 3HP or below,capacitor starting,within rated voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is 2.75 times more.Motors for 4HP or over are of capacitor start and run type.It has concentrate the advantages of high starting torque,smooth running,low temperature rising,low noise and greater overload performance.the designation number and nominative valves are all in conformity with IEC.

YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS

♦INTRODUCE

♣The YC series heavy-duty single-phase motors are suitable for powering small type machine tools and water pumps,especially for family workshops where only single-phase current is available.Motors of this series are integrated with up-to-date design,built with the best quality materials and attractive appearance.They have outstanding performance,easy maintenance and are reliable.They completely conform to international I.E.C. standards.

♣YC series protected motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.

YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS

♦OPERATING CONDITIONS

♣Ambient temperature:-15°c<Θ<40°c

♣Altitude:not exceed 1000m

♣Rated voltage:220v

♣Rated frequency:50Hz/60Hz

♣Dyty:S1(continuous)

♣Insulation class:B/F

♣Protection class:IP44/IP54

♣Cooling method:IC0141

YC SERIES PUMP MOTORS,SINGLE PHASE MOTORS

EXPLODEDVIEW:
