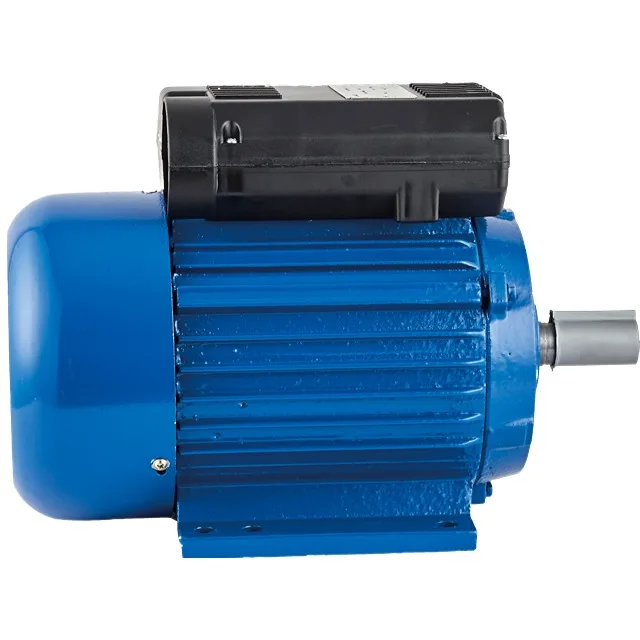

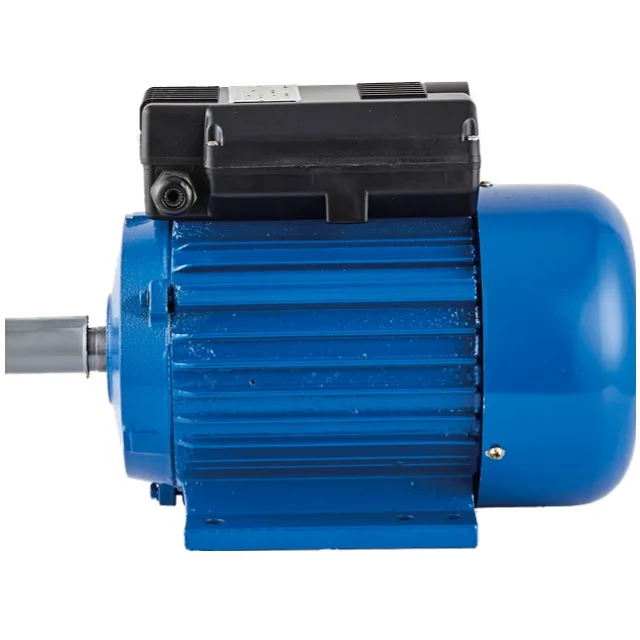

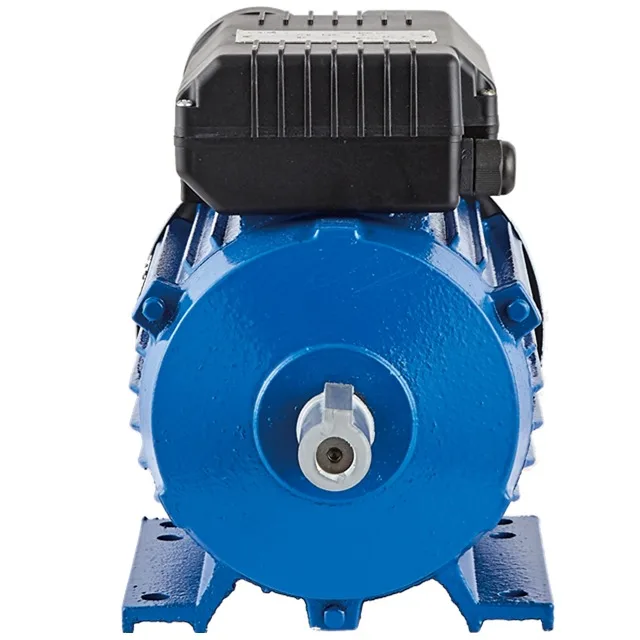

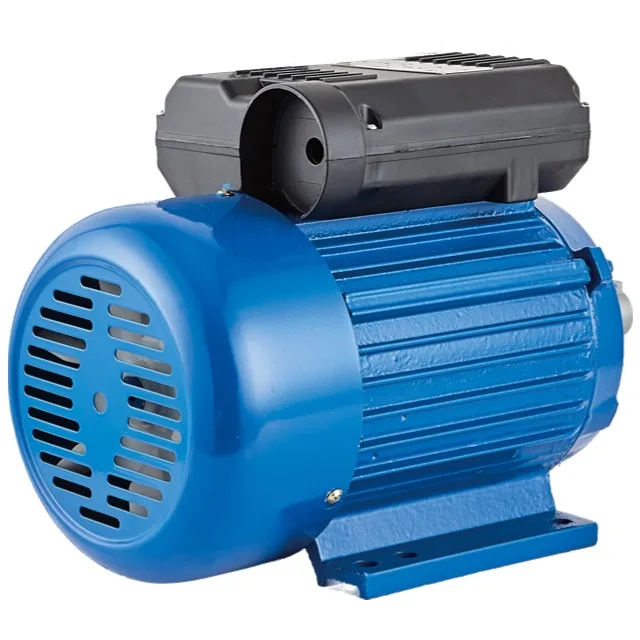

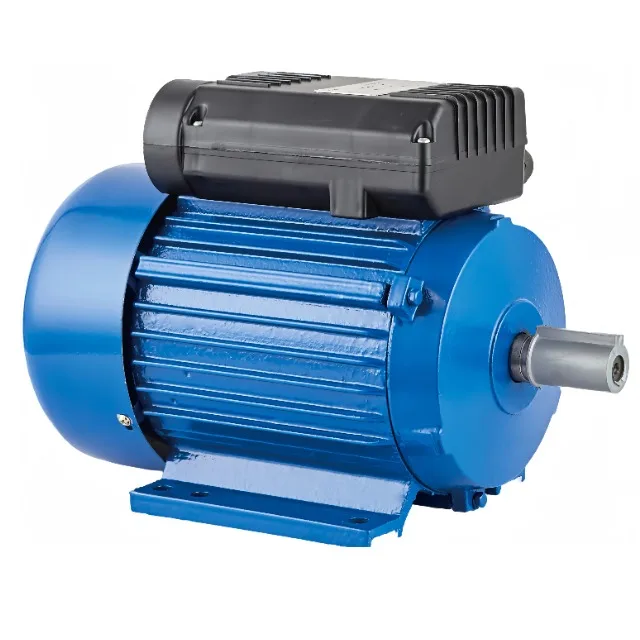

YL series single phase dual-capacitor induction motor is designed and manufacturerd in accordance with state standards,with outer standing performance of starting and operation,low noise,compact dimensions,light weight,easy maintenance etc.
Application
YL series are suitable for industrial machine,like
1 water pump
2 electic fan
3 food machines
4 electirc tools
5 Small machines
Feature
1 two capacitors
2 high efficiency
3 low nosie
4 easy maintenance
Working Conditions
Ambient temperature:-15C~40C
Altitude:no higher than 1000meters from sea level
Voltage:220+/-5% or 110V
Frequency:50HZ or 60HZ
Insulation class :B
Coolong type:IC411
Duty type:S1.
Material:
Housing: Aluminum,Cast iron
Rotor:45# Steel
Wire: 100% copper wire
Bearing:C&U
Connection box::cast iron

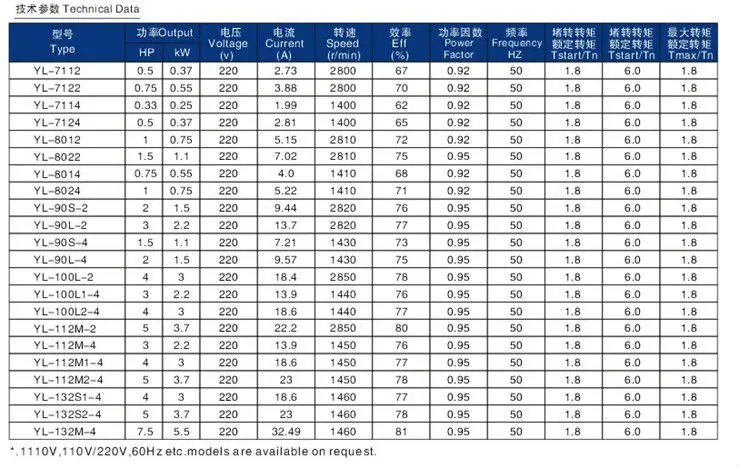

| Model | Output | Current(A) | Power Factor | Eff(%) | Speed(r/min) | Tstart/Tn | Ist/In | T.max/Tn | |
| (HP) | (KW) | ||||||||
| YL711-2 | 0.37 | 1/2 | 2.73 | 0.92 | 67 | 2800 | 1.8 | 6 | 1.8 |
| YL712-2 | 0.55 | 3/4 | 3.88 | 0.92 | 70 | 2800 | 1.8 | 6 | 1.8 |
| YL801-2 | 0.75 | 1 | 5.15 | 0.92 | 72 | 2810 | 1.8 | 6 | 1.8 |
| YL802-2 | 1.1 | 1.5 | 7.02 | 0.95 | 75 | 2810 | 1.8 | 6 | 1.8 |
| YL90S-2 | 1.5 | 2 | 9.44 | 0.95 | 76 | 2820 | 1.7 | 6 | 1.8 |
| YL90L-2 | 2.2 | 3 | 13.7 | 0.95 | 77 | 2820 | 1.7 | 6 | 1.8 |
| YL711-4 | 0.25 | 1/3 | 1.99 | 0.92 | 62 | 1400 | 1.8 | 6 | 1.8 |
| YL712-4 | 0.37 | 1/2 | 2.81 | 0.92 | 65 | 1400 | 1.8 | 6 | 1.8 |
| YL801-4 | 0.55 | 3/4 | 4 | 0.92 | 68 | 1410 | 1.8 | 6 | 1.8 |
| YL802-4 | 0.75 | 1 | 5.22 | 0.92 | 71 | 1410 | 1.8 | 6 | 1.8 |
| YL90S-4 | 1.1 | 1.5 | 7.21 | 0.95 | 73 | 1430 | 1.7 | 6 | 1.8 |
| YL90L-4 | 1.5 | 2 | 9.57 | 0.95 | 75 | 1430 | 1.7 | 6 | 1.8 |
| YL100L1-4 | 2.2 | 3 | 13.9 | 0.95 | 76 | 1440 | 1.7 | 6 | 1.8 |
| YL100L2-4 | 3 | 4 | 18.6 | 0.95 | 77 | 1440 | 1.7 | 6 | 1.8 |
| YL112M-4 | 2.2 | 3 | 13.9 | 0.95 | 76 | 1450 | 1.7 | 6 | 1.8 |
| YL112M1-4 | 3 | 4 | 18.6 | 0.95 | 77 | 1450 | 1.7 | 6 | 1.8 |
| YL112M2-4 | 3.7 | 5 | 23 | 0.95 | 78 | 1450 | 1.7 | 6 | 1.8 |
| YL132S1-4 | 3 | 4 | 18.6 | 0.95 | 77 | 1460 | 1.7 | 6 | 1.8 |
| YL132S2-4 | 3.7 | 5 | 23 | 0.95 | 78 | 1460 | 1.7 | 6 | 1.8 |
A: We are factory.
A: Generally it is 15-30days, it is according to quantity.
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
